There are many types and models of air‑cooled radiators. Many people are confused about which model to choose when selecting a radiator. Today we will give you a detailed introduction.
First of all, an air‑cooled radiator is recommended. Its main advantage is that no cooling water is required. It is easy to install and operate, and dissipates heat generated by the hydraulic system by means of ambient air.

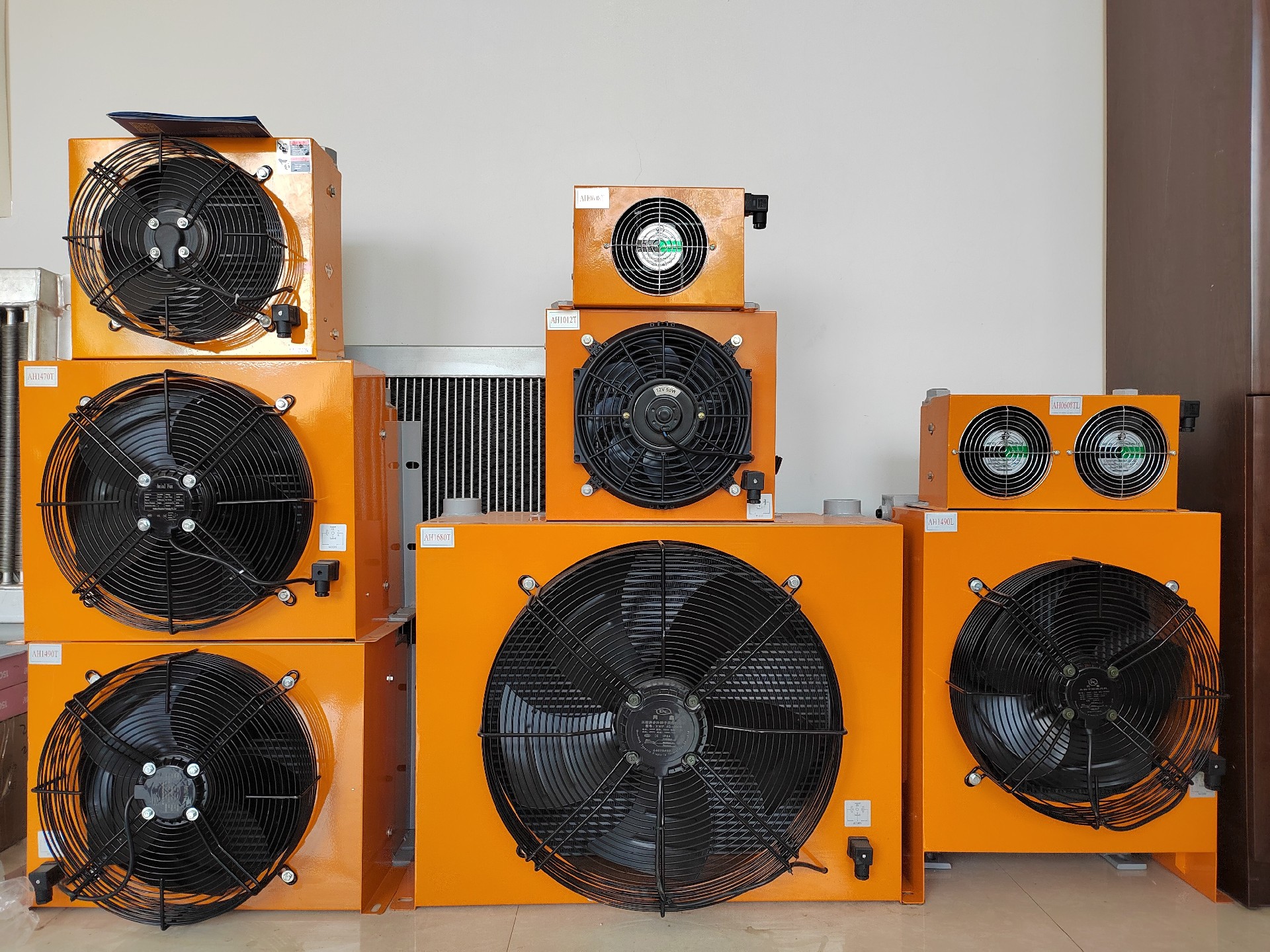

Secondly, how to select the correct model?Our company supplies radiator models including AH0608T‑60L, AH1012T‑100L, AH1417T‑150L, AH1470T‑200L, AH1490T‑250L, AH1680T‑300L and so on, covering specifications from 60 L up to 1000 L.
How do you pick the right radiator for your equipment? Here is a practical calculation formula:Hydraulic pump flow × Pump speed × 3The final calculated value is the reference flow for radiator model selection.
Thirdly, let’s look at several practical examples:Example 1: Pump flow = 16 ml/r, speed = 2000 r/min16 × 2000 × 3 = 96000, equivalent to 96 L.The recommended radiator model is AH1012T‑100L.
Example 2: Hydraulic power‑unit pump flow = 32 ml/r, matched motor speed = 1450 rpm32 × 1450 × 3 = 139200, equivalent to 139.2 L.The recommended radiator model is AH1417T‑150L.
Many manufacturers of hydraulic log splitters also need radiators to cool their hydraulic oil systems. The same formula applies:Pump flow × Engine speed × 3
Example 3: Pump flow = 52 ml/r, engine speed = 960 rpm52 × 960 × 3 = 149760, equivalent to 150 L.The recommended radiator model is AH1417T‑150L.
Have you learned how to select the radiator model now?Thank you.
