Air-cooled Hydraulic Oil Heat Exchanger

Air-cooled Hydraulic Oil Heat Exchanger Product Introduction

Air-cooled Hydraulic Oil Heat Exchanger Cooling capacity 40000Kcal/h，traffic 450L/min，Fan power 836W，Exhaust air 11800m³/h，The cooling area 33.2m²。

Air-cooled Hydraulic Oil Heat Exchanger Application Fields

Applied to: hydraulic stations, CNC machine tools, construction machinery, windpower equipment, port machinery, plastic machinery, metallurgical machinery, shipbuilding industry and other fields.

We provide solutions to reduce the fluid temperature for hydraulic systems, lubrication systems and other systems of the equipment.

Air-cooled Hydraulic Oil Heat Exchanger Features

1. Eco-friendly, energy-saving, easy maintenance and low operating cost.

2. Compact structure, large heat dissipation area and high heat exchange efficiency.

3. Long service life and high working pressure. It is applicable for system return oil cooling, drain oil cooling and independent circuit cooling.

4. Simple operation, easy installation and low failure rate.

5. High safety performance. In case of cooler damage, it will not cause water-oil mixing like water coolers, which avoids fatal damage to the hydraulic and lubrication systems.

6. Wide temperature adaptability: applicable fluid temperature: 10℃~130℃, ambient temperature: -40℃~100℃.

Air-cooled Hydraulic Oil Heat Exchanger Type description

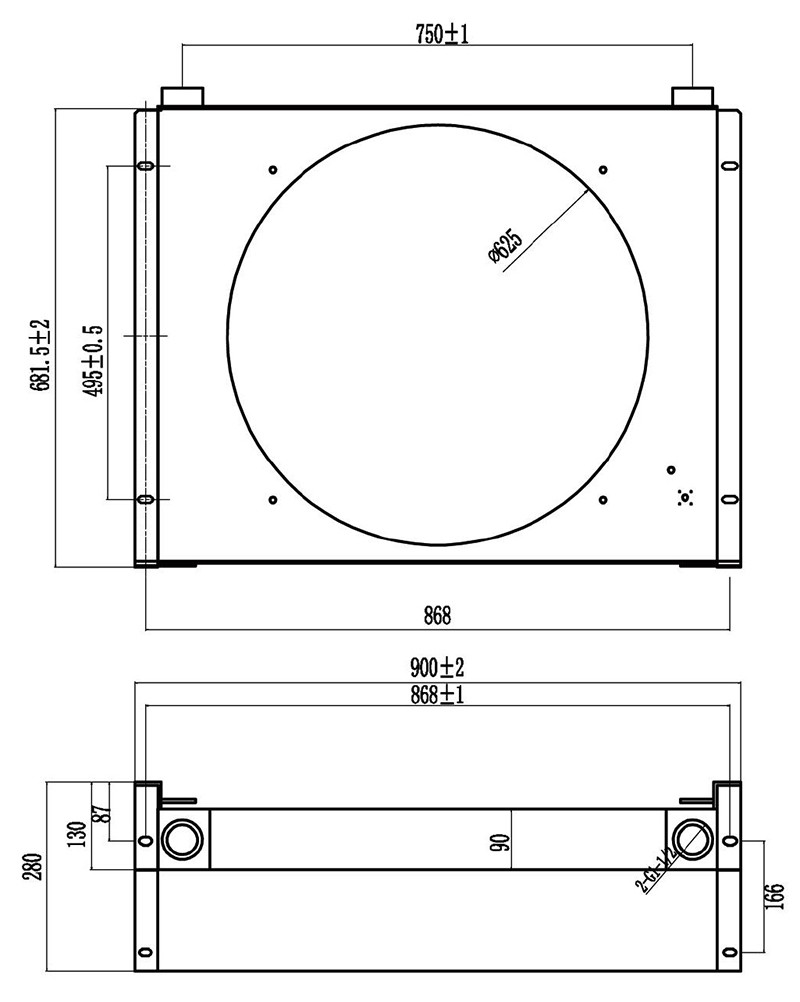

Air-cooled Hydraulic Oil Heat Exchanger Overall dimension

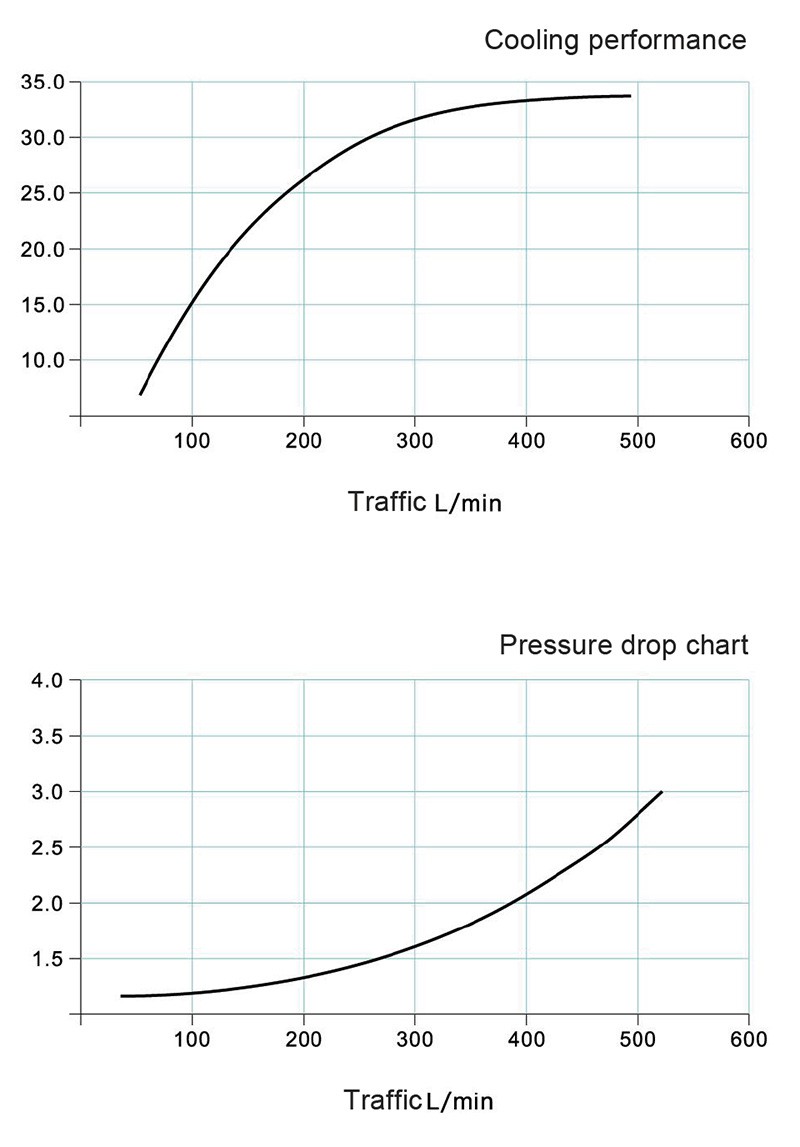

Air-cooled Hydraulic Oil Heat Exchanger Performance curve
