Industrial Air-cooled Oil Cooler

Industrial Air-cooled Oil Cooler Product Introduction

Industrial Air-cooled Oil Cooler Cooling capacity 10000Kcal/h，traffic 150L/min，Fan power 130W，Exhaust air 1810m³/h，The cooling area 6.2m²。

Industrial Air-cooled Oil Cooler Application Fields

Applied to: hydraulic stations, CNC machine tools, construction machinery, windpower equipment, port machinery, plastic machinery, metallurgical machinery, shipbuilding industry and other fields.

We provide solutions to reduce the fluid temperature for hydraulic systems, lubrication systems and other systems of the equipment.

Industrial Air-cooled Oil Cooler Features

1. Eco-friendly, energy-saving, easy maintenance and low operating cost.

2. Compact structure, large heat dissipation area and high heat exchange efficiency.

3. Long service life and high working pressure. It is applicable for system return oil cooling, drain oil cooling and independent circuit cooling.

4. Simple operation, easy installation and low failure rate.

5. High safety performance. In case of cooler damage, it will not cause water-oil mixing like water coolers, which avoids fatal damage to the hydraulic and lubrication systems.

6. Wide temperature adaptability: applicable fluid temperature: 10℃~130℃, ambient temperature: -40℃~100℃.

Industrial Air-cooled Oil Cooler Type description

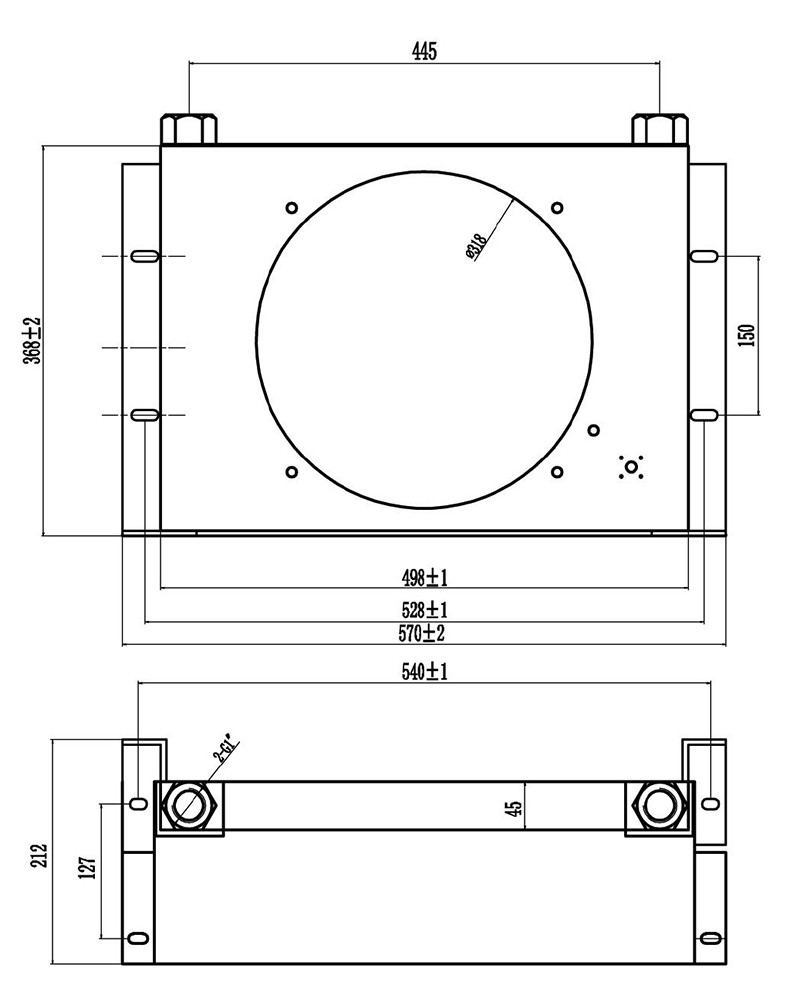

Industrial Air-cooled Oil Cooler Overall dimension

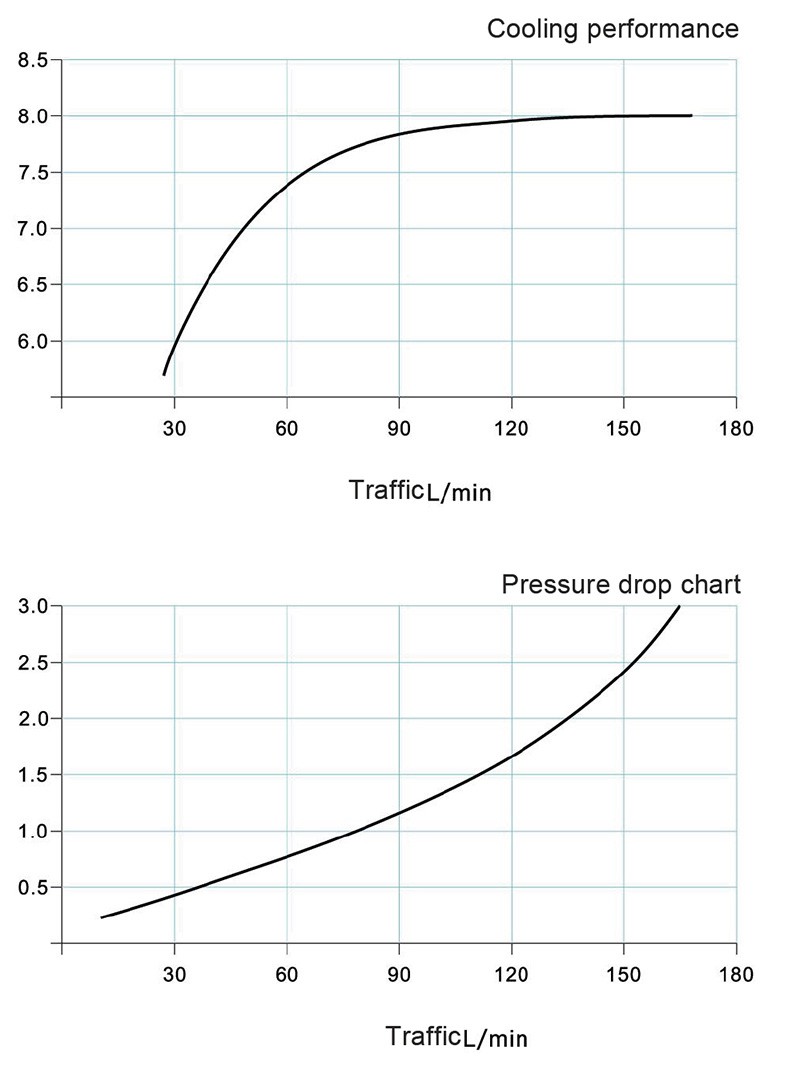

Industrial Air-cooled Oil Cooler Performance curve
