Air Cooled Hydraulic Radiator

Air Cooled Hydraulic Radiator Product Introduction

Air Cooled Hydraulic Radiator Cooling capacity 3000Kcal/h，traffic 60L/min，Fan power 2*48W，Exhaust air 400m³/h，The cooling area 1.8m²。

Air Cooled Hydraulic Radiator Application Fields

Applied to: hydraulic stations, CNC machine tools, construction machinery, windpower equipment, port machinery, plastic machinery, metallurgical machinery, shipbuilding industry and other fields.

We provide solutions to reduce the fluid temperature for hydraulic systems, lubrication systems and other systems of the equipment.

Air Cooled Hydraulic Radiator Features

1. Eco-friendly, energy-saving, easy maintenance and low operating cost.

2. Compact structure, large heat dissipation area and high heat exchange efficiency.

3. Long service life and high working pressure. It is applicable for system return oil cooling, drain oil cooling and independent circuit cooling.

4. Simple operation, easy installation and low failure rate.

5. High safety performance. In case of cooler damage, it will not cause water-oil mixing like water coolers, which avoids fatal damage to the hydraulic and lubrication systems.

6. Wide temperature adaptability: applicable fluid temperature: 10℃~130℃, ambient temperature: -40℃~100℃.

Air Cooled Hydraulic Radiator Type description

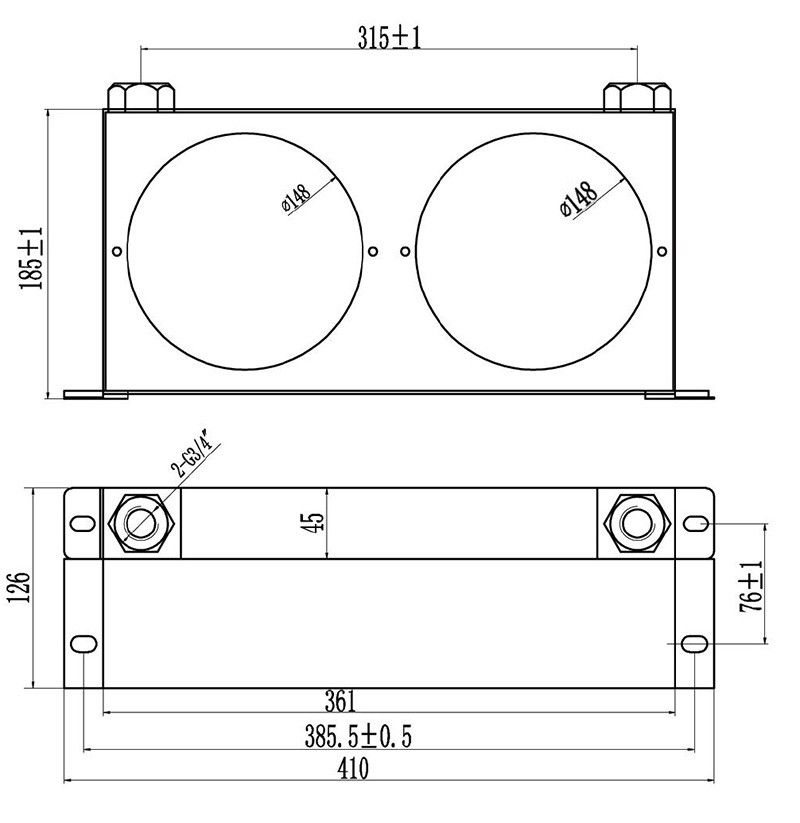

Air Cooled Hydraulic Radiator Overall dimension

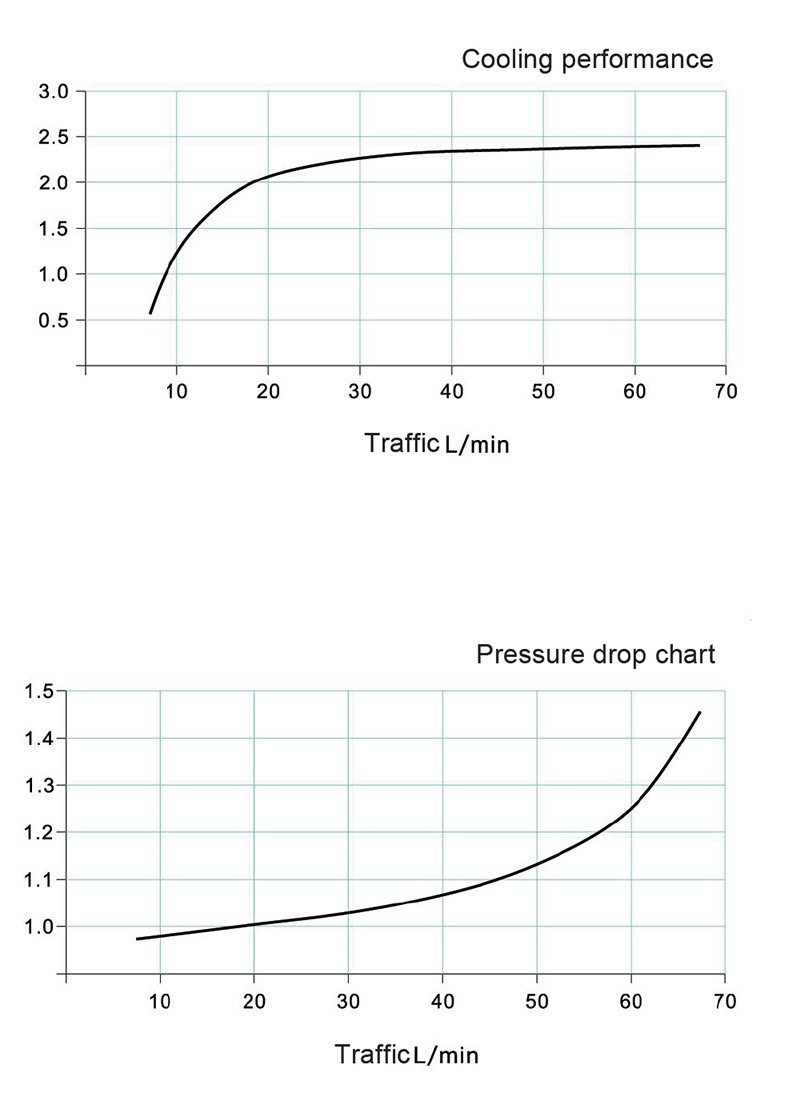

Air Cooled Hydraulic Radiator Performance curve
