Hydraulic Oil Air Cooling Radiator

Construction Machinery Hydraulic Oil Cooler Product Introduction

Construction Machinery Hydraulic Oil Cooler Cooling capacity 43000Kcal/h，traffic 450L/min，Fan power 836W，Exhaust air 11000m³/h，The cooling area 31m²。

Construction Machinery Hydraulic Oil Cooler Application Fields

Applied to: hydraulic stations, CNC machine tools, construction machinery, windpower equipment, port machinery, plastic machinery, metallurgical machinery, shipbuilding industry and other fields.

We provide solutions to reduce the fluid temperature for hydraulic systems, lubrication systems and other systems of the equipment.

Construction Machinery Hydraulic Oil Cooler Features

1. Eco-friendly, energy-saving, easy maintenance and low operating cost.

2. Compact structure, large heat dissipation area and high heat exchange efficiency.

3. Long service life and high working pressure. It is applicable for system return oil cooling, drain oil cooling and independent circuit cooling.

4. Simple operation, easy installation and low failure rate.

5. High safety performance. In case of cooler damage, it will not cause water-oil mixing like water coolers, which avoids fatal damage to the hydraulic and lubrication systems.

6. Wide temperature adaptability: applicable fluid temperature: 10℃~130℃, ambient temperature: -40℃~100℃.

Construction Machinery Hydraulic Oil Cooler Type description

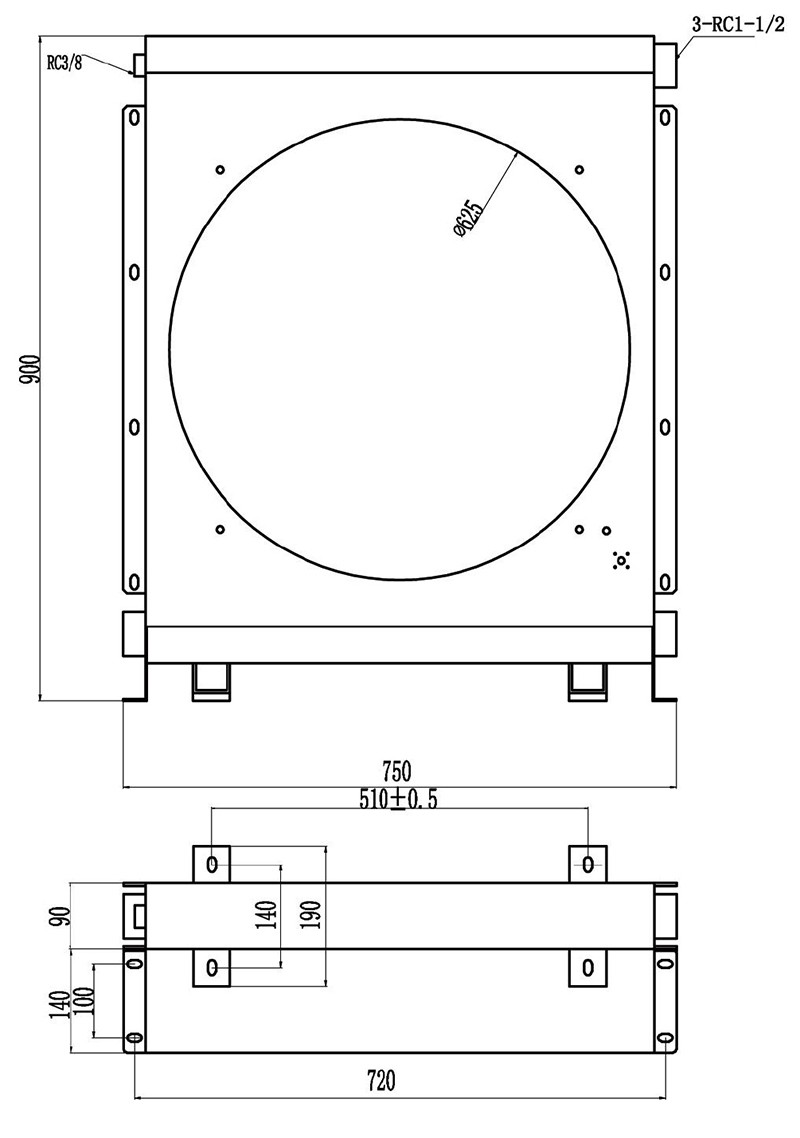

Construction Machinery Hydraulic Oil Cooler Overall dimension

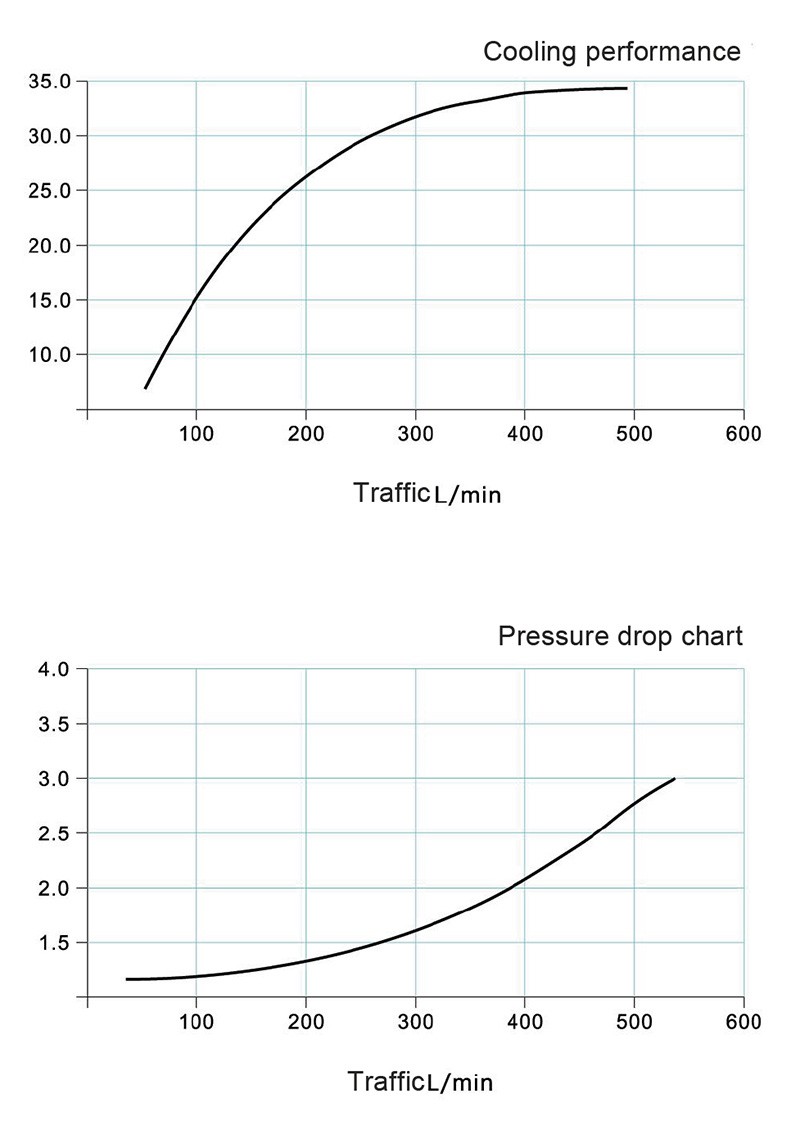

Construction Machinery Hydraulic Oil Cooler Performance curve
