Hydraulic Air Cooling Unit

Hydraulic Air Cooling Unit Product Introduction

Hydraulic Air Cooling Unit Cooling capacity 32000Kcal/h，traffic 300L/min，Fan power 380W，Exhaust air 4200m³/h，The cooling area 24m²。

Hydraulic Air Cooling Unit Application Fields

Applied to: hydraulic stations, CNC machine tools, construction machinery, windpower equipment, port machinery, plastic machinery, metallurgical machinery, shipbuilding industry and other fields.

We provide solutions to reduce the fluid temperature for hydraulic systems, lubrication systems and other systems of the equipment.

Hydraulic Air Cooling Unit Features

1. Eco-friendly, energy-saving, easy maintenance and low operating cost.

2. Compact structure, large heat dissipation area and high heat exchange efficiency.

3. Long service life and high working pressure. It is applicable for system return oil cooling, drain oil cooling and independent circuit cooling.

4. Simple operation, easy installation and low failure rate.

5. High safety performance. In case of cooler damage, it will not cause water-oil mixing like water coolers, which avoids fatal damage to the hydraulic and lubrication systems.

6. Wide temperature adaptability: applicable fluid temperature: 10℃~130℃, ambient temperature: -40℃~100℃.

Hydraulic Air Cooling Unit Type description

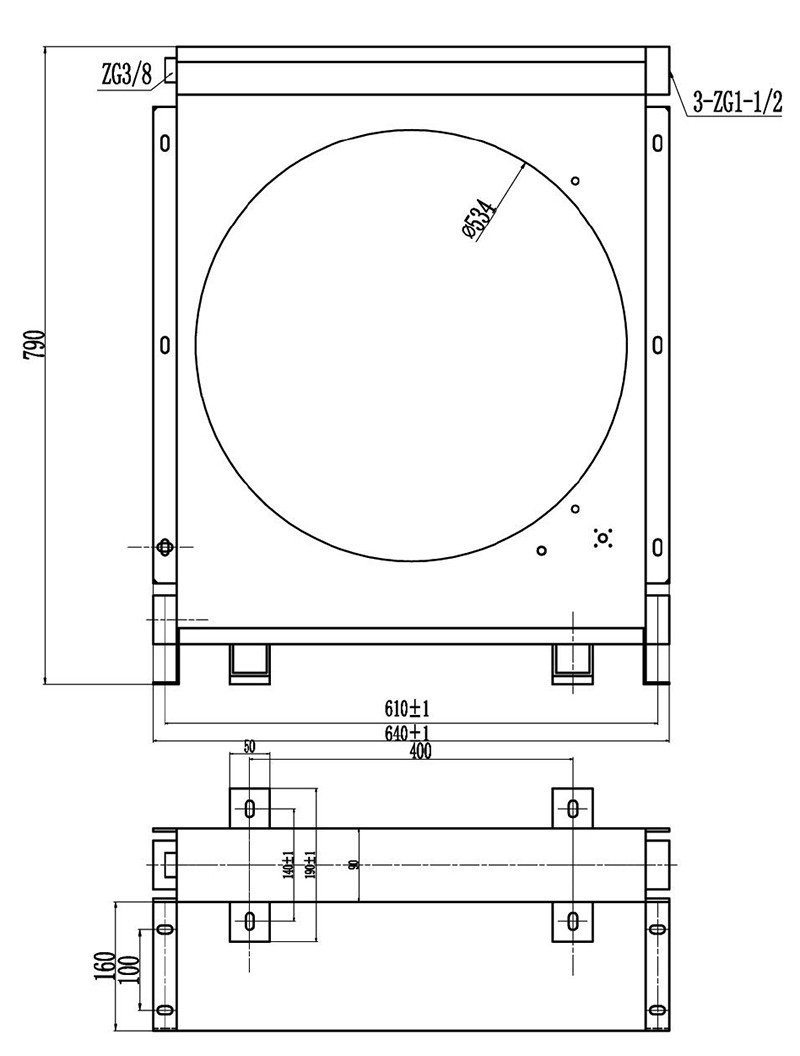

Hydraulic Air Cooling Unit Overall dimension

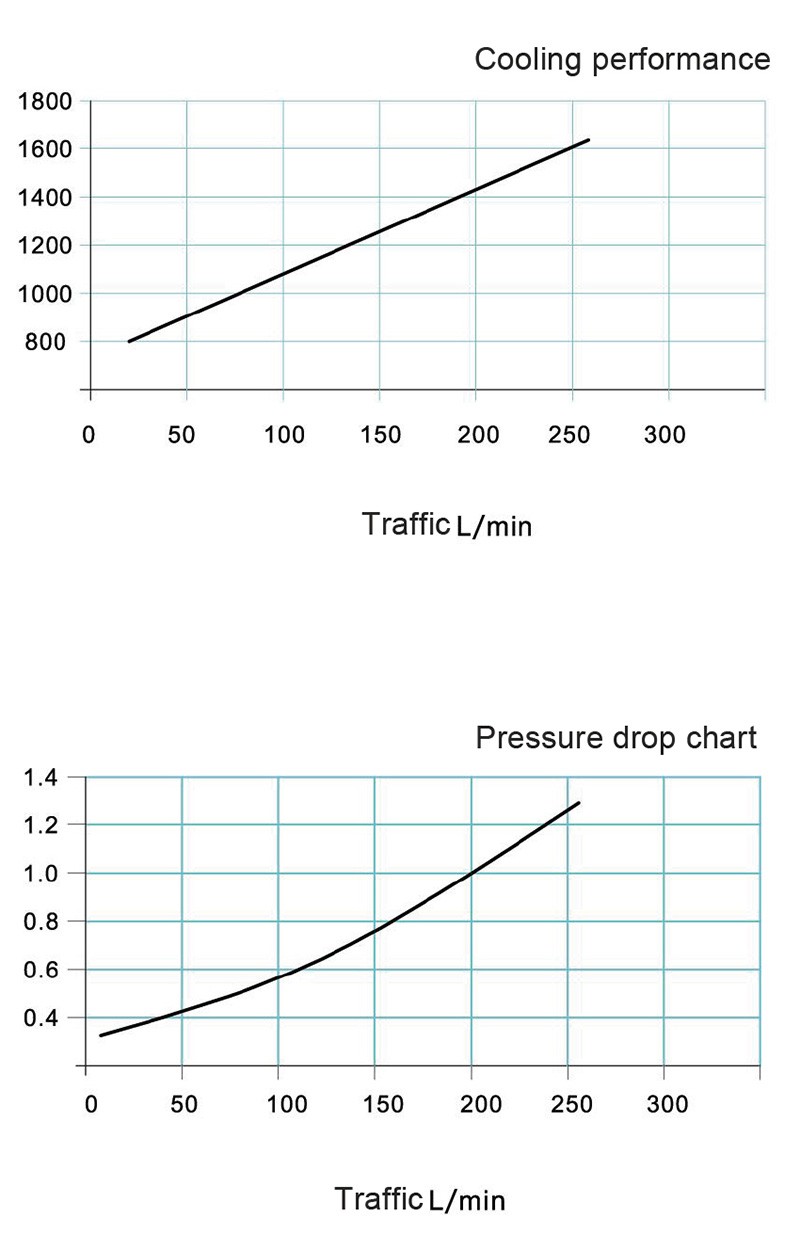

Hydraulic Air Cooling Unit Performance curve
