Hydraulic Pump Station Air Oil Radiator

Hydraulic Pump Station Air Oil Radiator Product Introduction

Hydraulic Pump Station Air Oil Radiator Cooling capacity 60200Kcal/h，traffic 700L/min，Fan power 1600W，Exhaust air 23500m³/h，The cooling area 50m²。

Hydraulic Pump Station Air Oil Radiator Application Fields

Applied to: hydraulic stations, CNC machine tools, construction machinery, windpower equipment, port machinery, plastic machinery, metallurgical machinery, shipbuilding industry and other fields.

We provide solutions to reduce the fluid temperature for hydraulic systems, lubrication systems and other systems of the equipment.

Hydraulic Pump Station Air Oil Radiator Features

1. Eco-friendly, energy-saving, easy maintenance and low operating cost.

2. Compact structure, large heat dissipation area and high heat exchange efficiency.

3. Long service life and high working pressure. It is applicable for system return oil cooling, drain oil cooling and independent circuit cooling.

4. Simple operation, easy installation and low failure rate.

5. High safety performance. In case of cooler damage, it will not cause water-oil mixing like water coolers, which avoids fatal damage to the hydraulic and lubrication systems.

6. Wide temperature adaptability: applicable fluid temperature: 10℃~130℃, ambient temperature: -40℃~100℃.

Hydraulic Pump Station Air Oil Radiator Type description

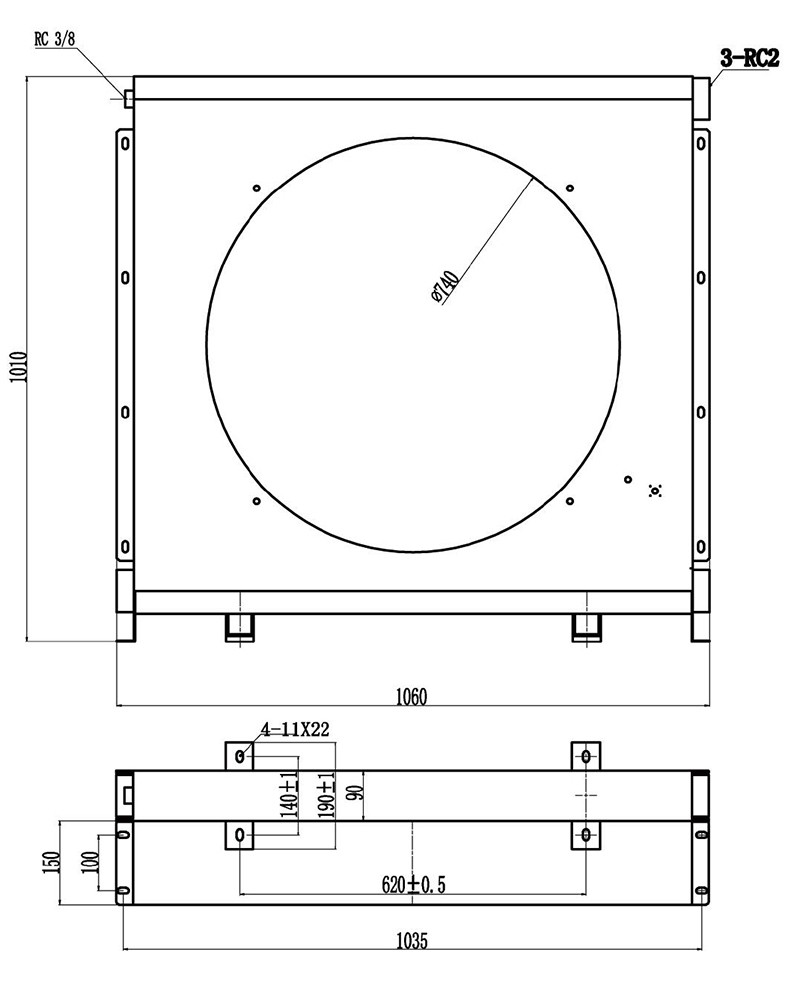

Hydraulic Pump Station Air Oil Radiator Overall dimension

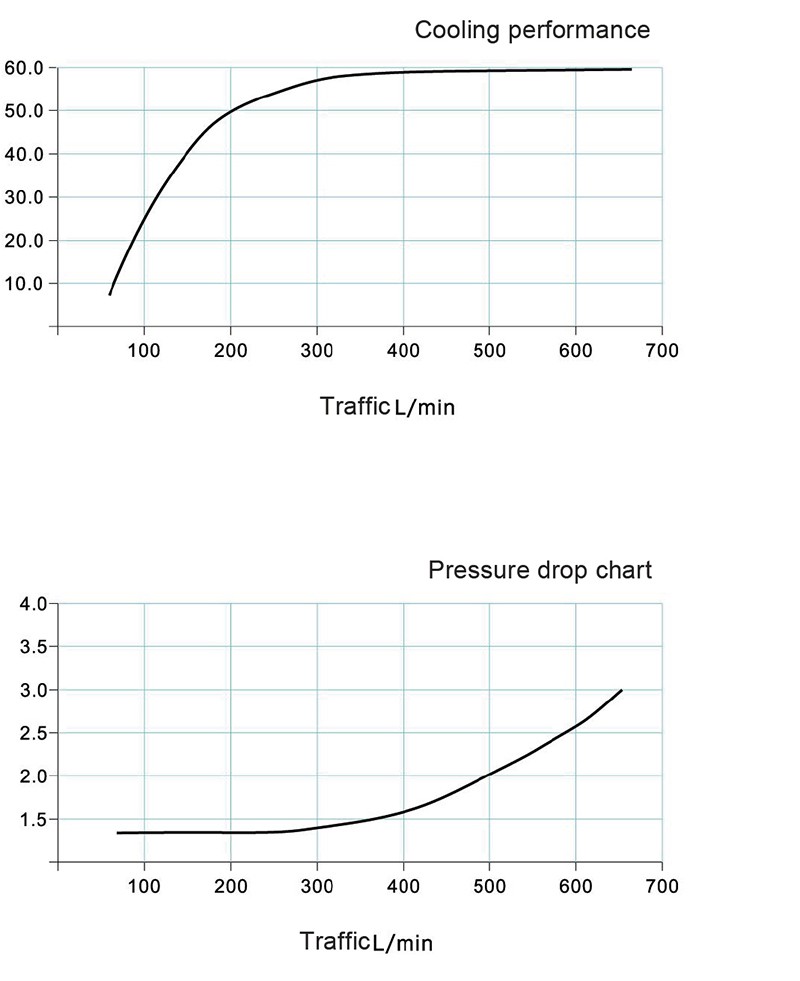

Hydraulic Pump Station Air Oil Radiator Performance curve
