Hydraulic System Air Cooler

Hydraulic System Air Cooler Product Introduction

Hydraulic System Air Cooler Cooling capacity 18000Kcal/h，traffic 250L/min，Fan power 150W，Exhaust air 3150m³/h，The cooling area 10.5m²。

Hydraulic System Air Cooler Application Fields

Applied to: hydraulic stations, CNC machine tools, construction machinery, windpower equipment, port machinery, plastic machinery, metallurgical machinery, shipbuilding industry and other fields.

We provide solutions to reduce the fluid temperature for hydraulic systems, lubrication systems and other systems of the equipment.

Hydraulic System Air Cooler Features

1. Eco-friendly, energy-saving, easy maintenance and low operating cost.

2. Compact structure, large heat dissipation area and high heat exchange efficiency.

3. Long service life and high working pressure. It is applicable for system return oil cooling, drain oil cooling and independent circuit cooling.

4. Simple operation, easy installation and low failure rate.

5. High safety performance. In case of cooler damage, it will not cause water-oil mixing like water coolers, which avoids fatal damage to the hydraulic and lubrication systems.

6. Wide temperature adaptability: applicable fluid temperature: 10℃~130℃, ambient temperature: -40℃~100℃.

Hydraulic System Air Cooler Type description

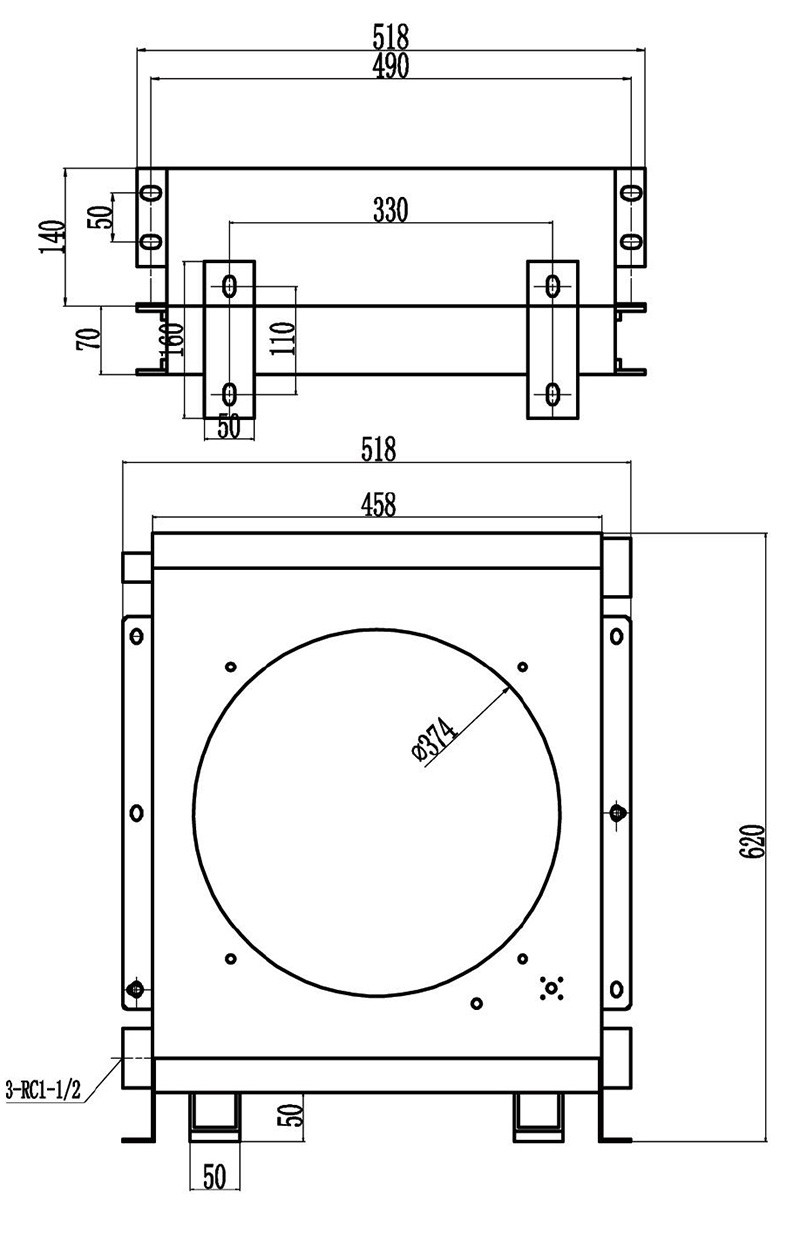

Hydraulic System Air Cooler Overall dimension

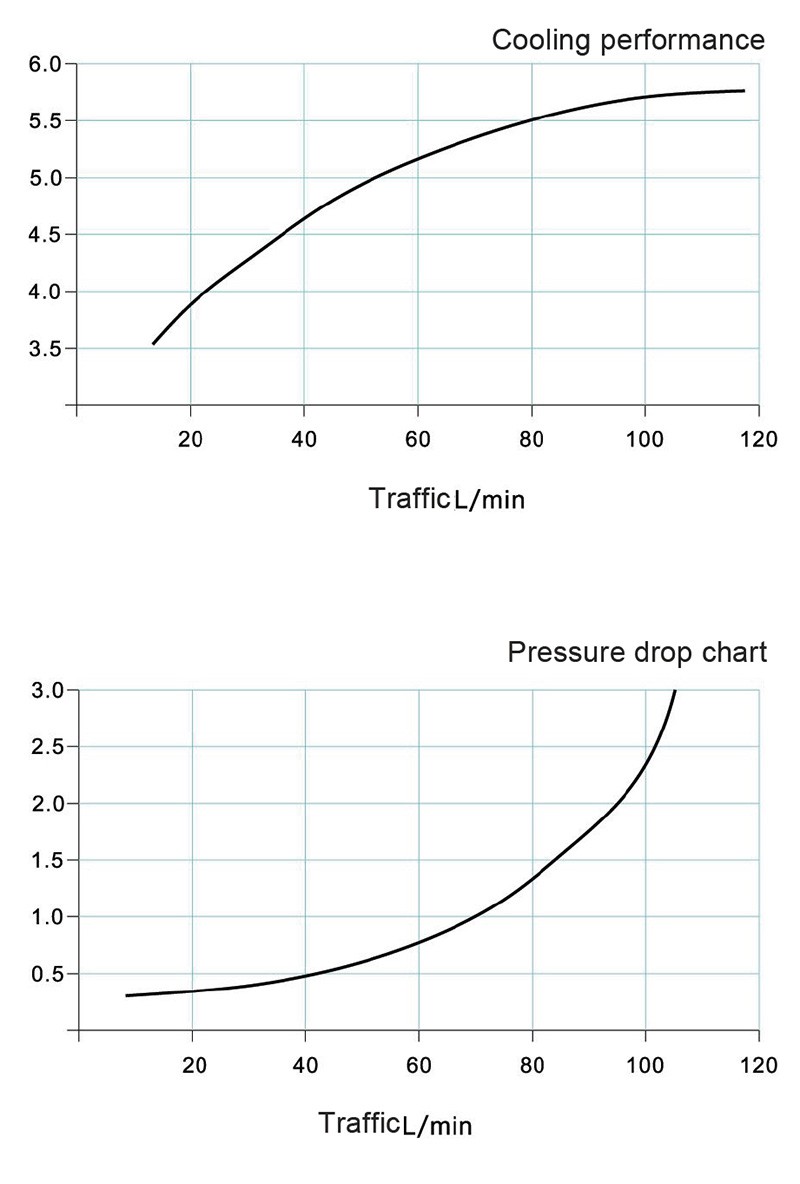

Hydraulic System Air Cooler Performance curve
