Vehicle-mounted Hydraulic Air Cooler

Vehicle-mounted Hydraulic Air Cooler Product Introduction

Vehicle-mounted Hydraulic Air Cooler Cooling capacity 50000Kcal/h，traffic 600L/min，Fan power 1600W，Exhaust air 23500m³/h，The cooling area 48.2m²。

Vehicle-mounted Hydraulic Air Cooler Application Fields

Applied to: hydraulic stations, CNC machine tools, construction machinery, windpower equipment, port machinery, plastic machinery, metallurgical machinery, shipbuilding industry and other fields.

We provide solutions to reduce the fluid temperature for hydraulic systems, lubrication systems and other systems of the equipment.

Vehicle-mounted Hydraulic Air Cooler Features

1. Eco-friendly, energy-saving, easy maintenance and low operating cost.

2. Compact structure, large heat dissipation area and high heat exchange efficiency.

3. Long service life and high working pressure. It is applicable for system return oil cooling, drain oil cooling and independent circuit cooling.

4. Simple operation, easy installation and low failure rate.

5. High safety performance. In case of cooler damage, it will not cause water-oil mixing like water coolers, which avoids fatal damage to the hydraulic and lubrication systems.

6. Wide temperature adaptability: applicable fluid temperature: 10℃~130℃, ambient temperature: -40℃~100℃.

Vehicle-mounted Hydraulic Air Cooler Type description

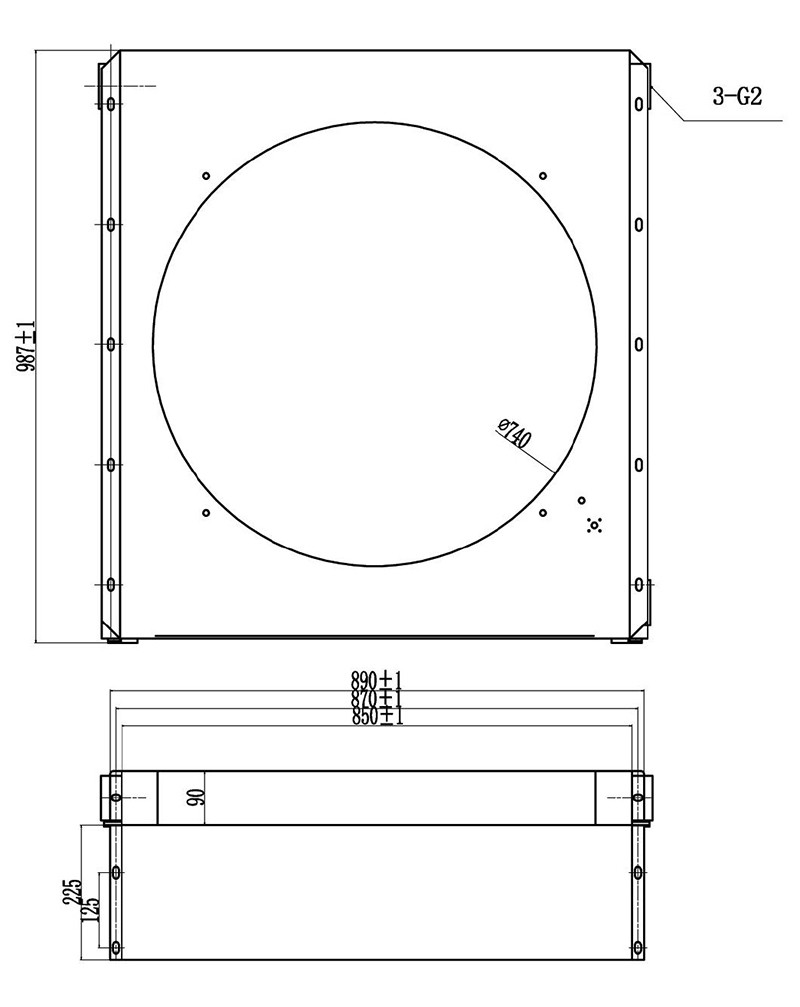

Vehicle-mounted Hydraulic Air Cooler Overall dimension

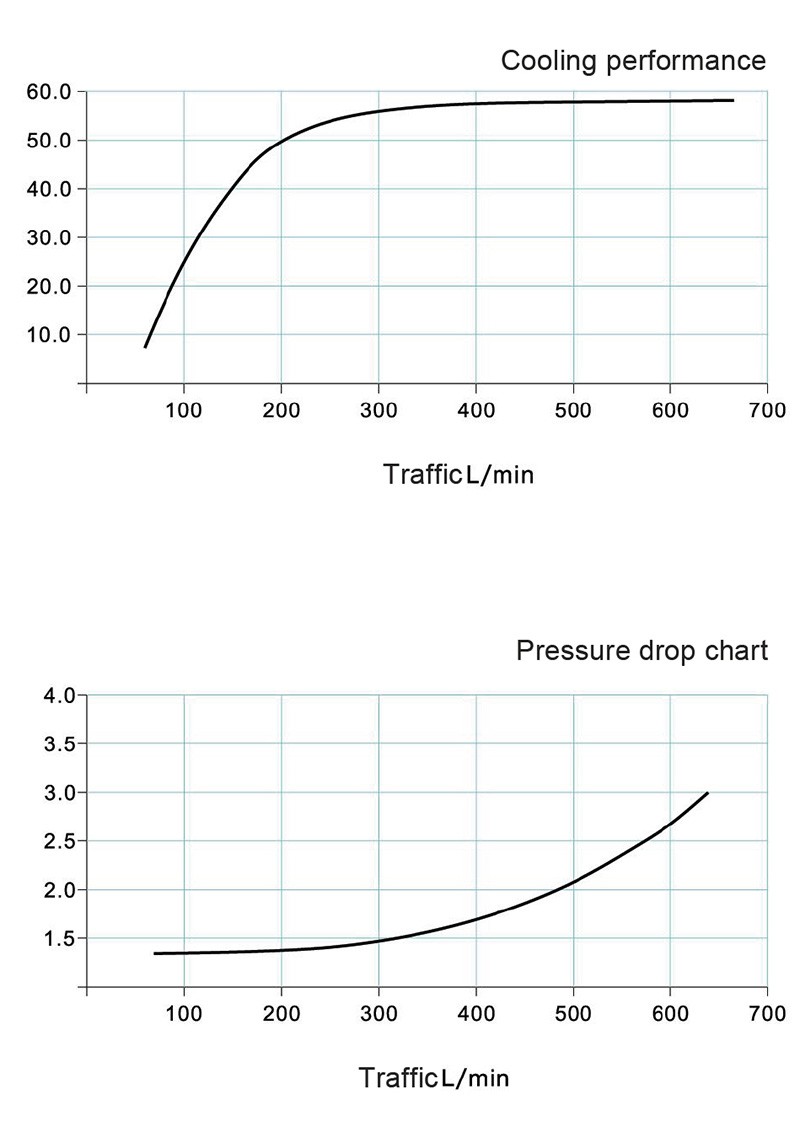

Vehicle-mounted Hydraulic Air Cooler Performance curve
